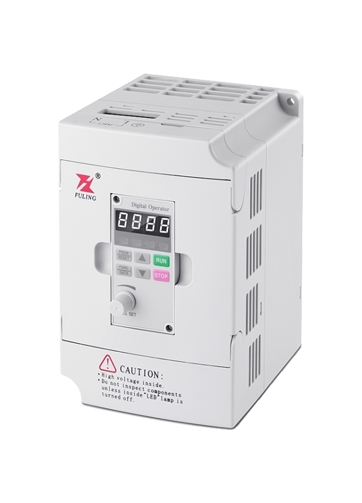

It is mainly used for frequency conversion speed regulation and energy saving of three-phase asynchronous AC motors. It is used to control and adjust the speed of three-phase AC asynchronous motors. With its stable performance, rich combination functions, high-performance vector control technology, Torque output, good dynamic characteristics and super overload capacity occupy an important position in the inverter market.

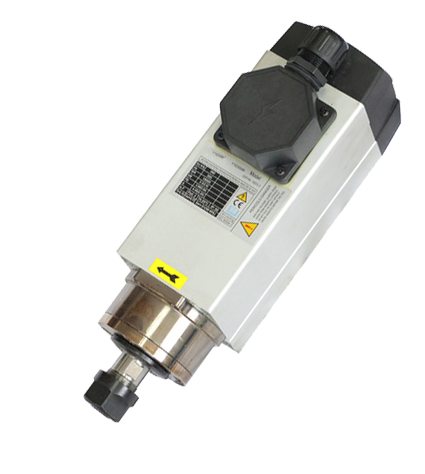

Good bearing quality and long working life Applications: Milling, engraving, drilling in various CNC routers Each spindle motor must undergo a polishing process to improve the concentricity of the spindle and increase the working life of the motor.

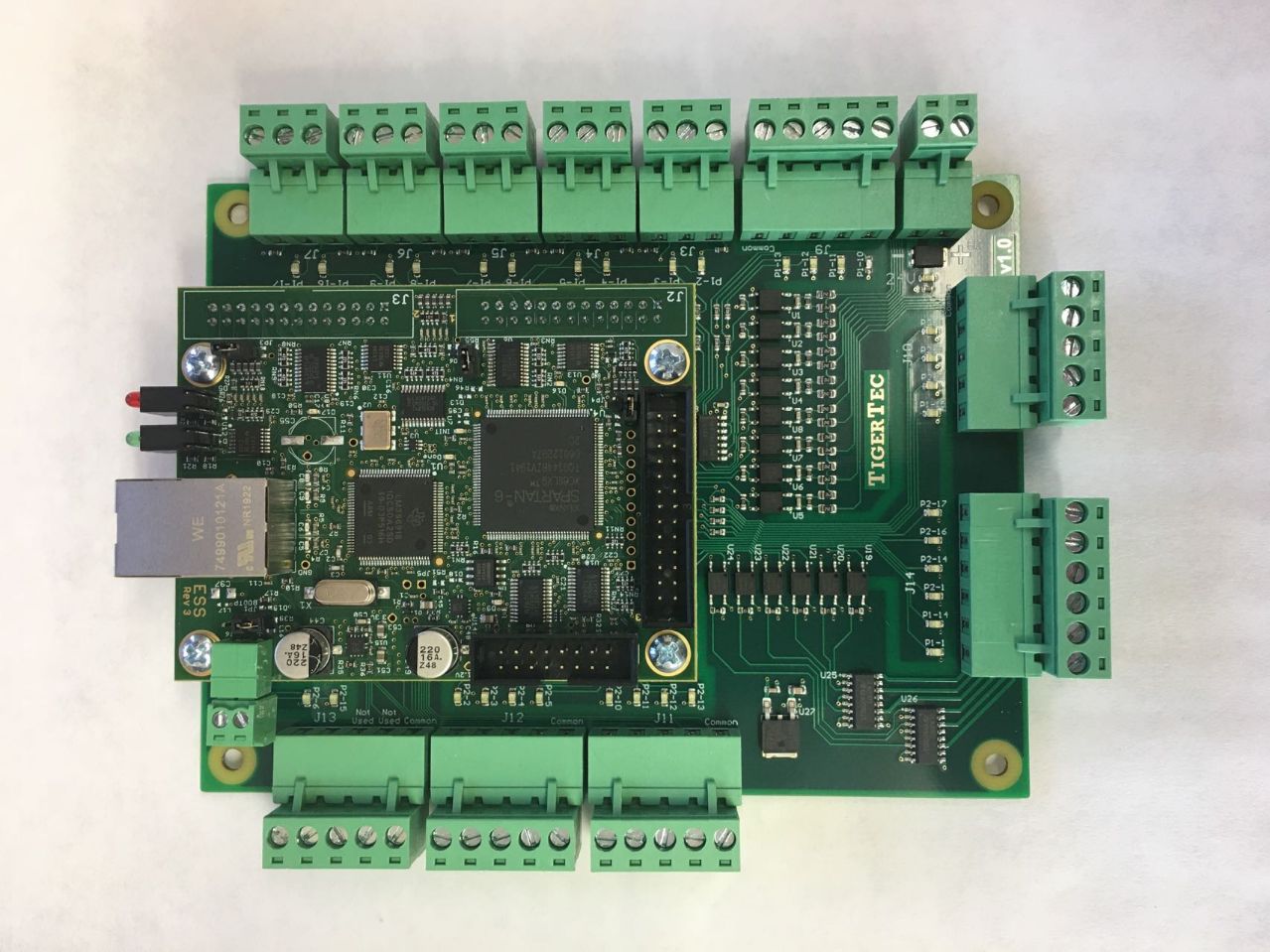

Mach3 control software is an open CNC system, easy to operate, easy to maintain, and a new type of CNC system with openness, stable performance.

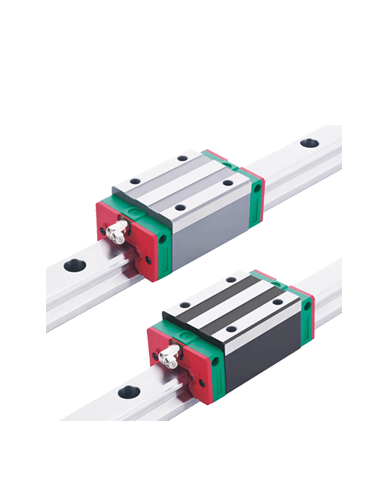

HIWIN linear guideway improves the load and rigidity; it has the characteristics of load in four directions and the function of automatic centering, which can absorb the assembly error of the installation surface and meet the high precision requirements.

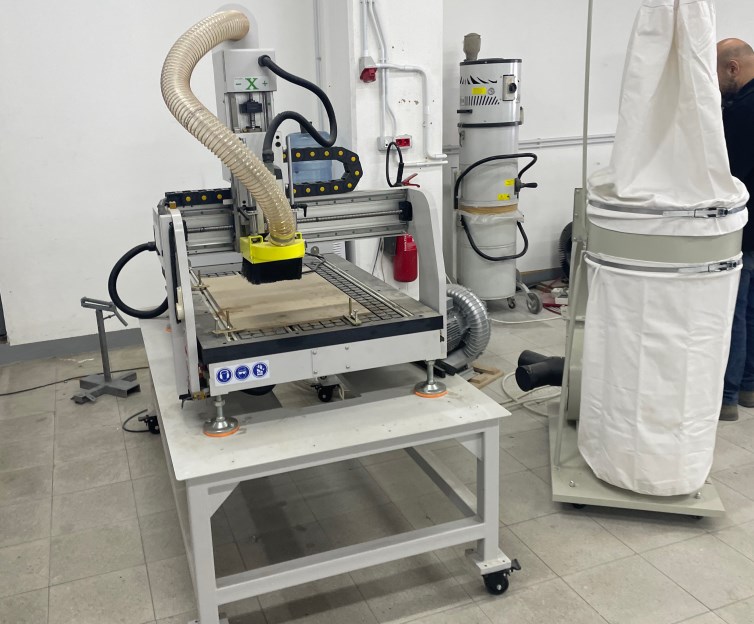

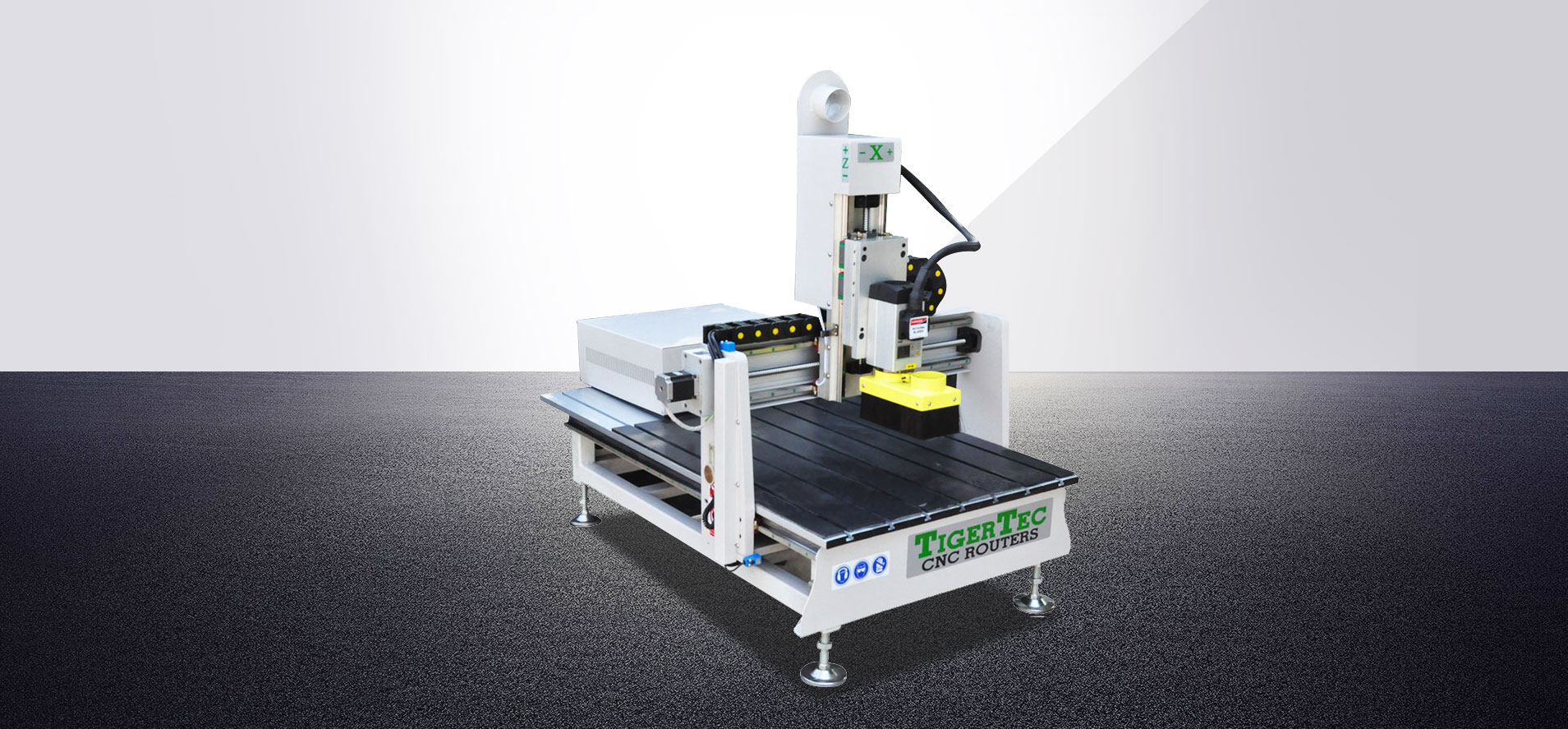

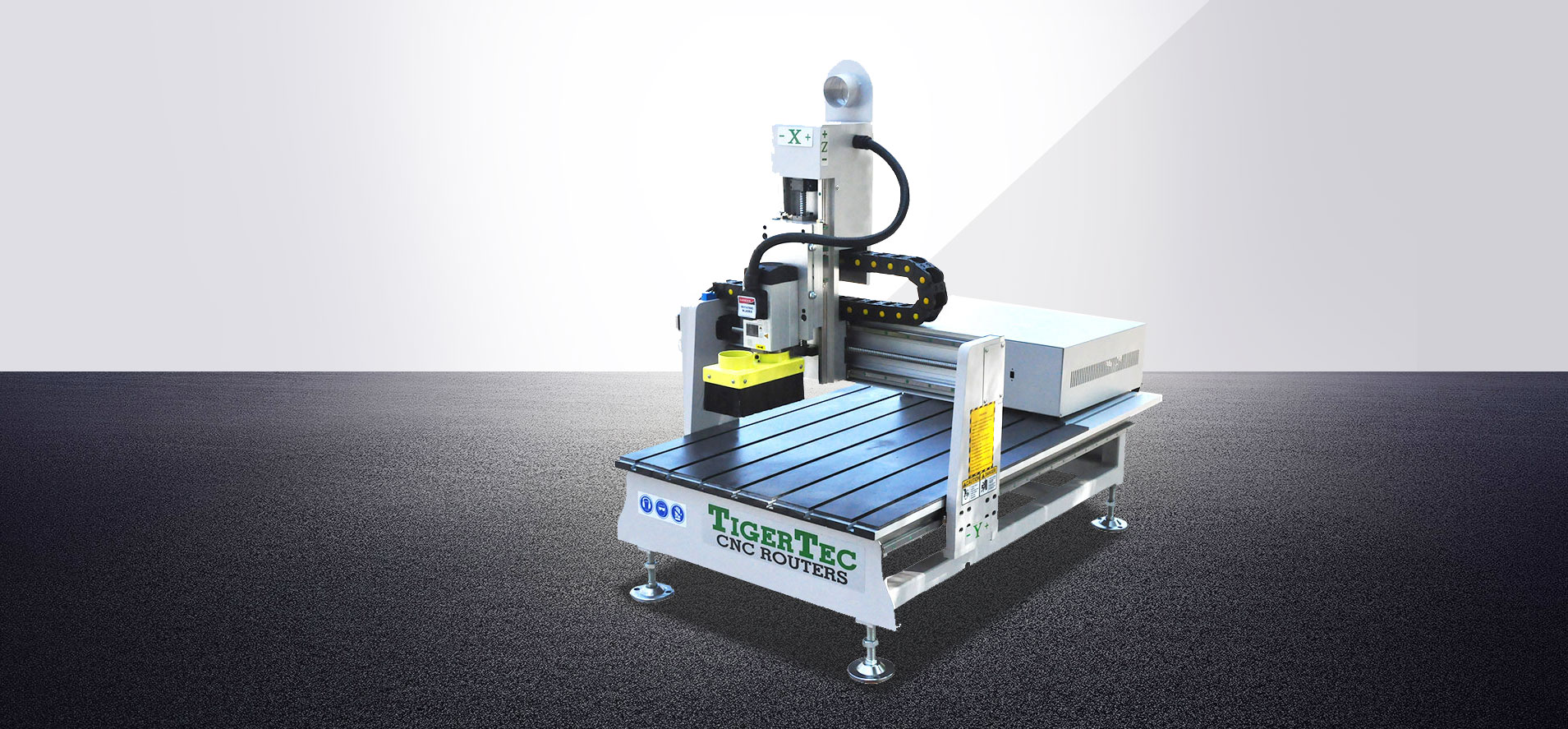

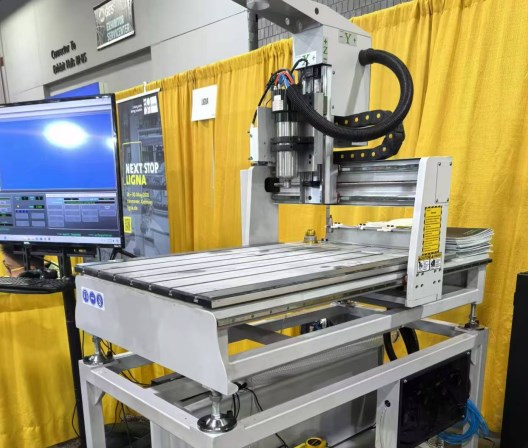

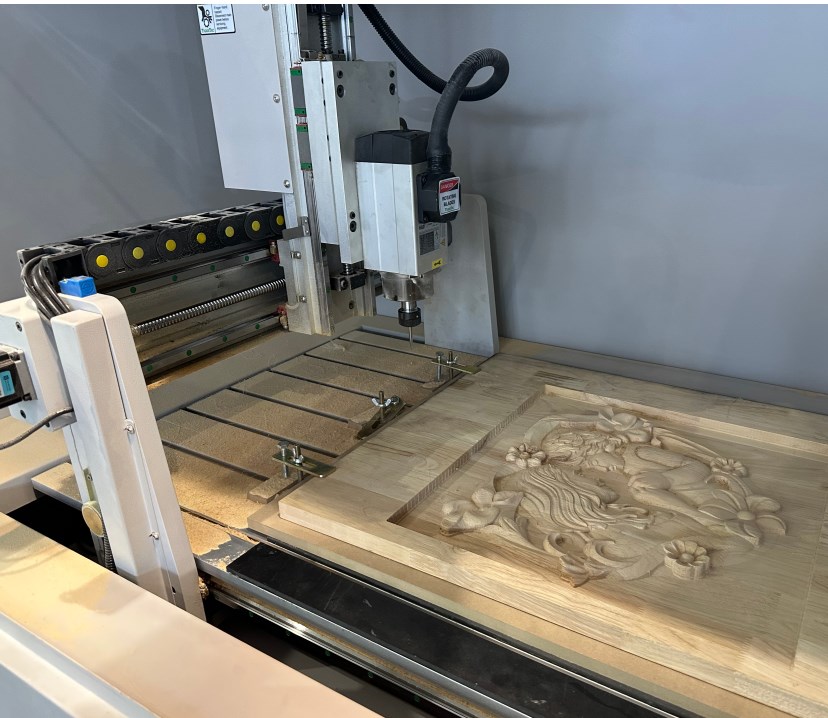

TR203 economical CNC Router, a compact version of a full-scale CNC system that designed for smaller sized business or production environment or educational setting.
Outstanding features:
600*900mm(23.6"×35.4")process area,with 150mm(5.9") Z-axis stroke
With a 1.5KW(2HP)HQD air coolant spindle
Precision Ball screws and HIWIN linear rail and bearing on all 3 axes
Micro stepper motors and Mach3 controls
T- slot table for easy parts fixturing
All the mechanical parts done by the CNC machine tools in Tigertec factory.
Options:
Steel base with casters
Servo driving system
Vacuum pump from China or Germany for your choice
1.5HP dust collector
Coolant system
4th axis rotary table with tailstock
Applications:
Ideal for small part production, prototyping,model making,Metal engraving,woodworking,signage,educational applications and very advanced hobby application.Designed to cut a multitude of materials such as composite materials,foam,plastic, wood, acrylic, MDF, bamboo, PVC, double color board,copper,aluminum and ACP and so on.

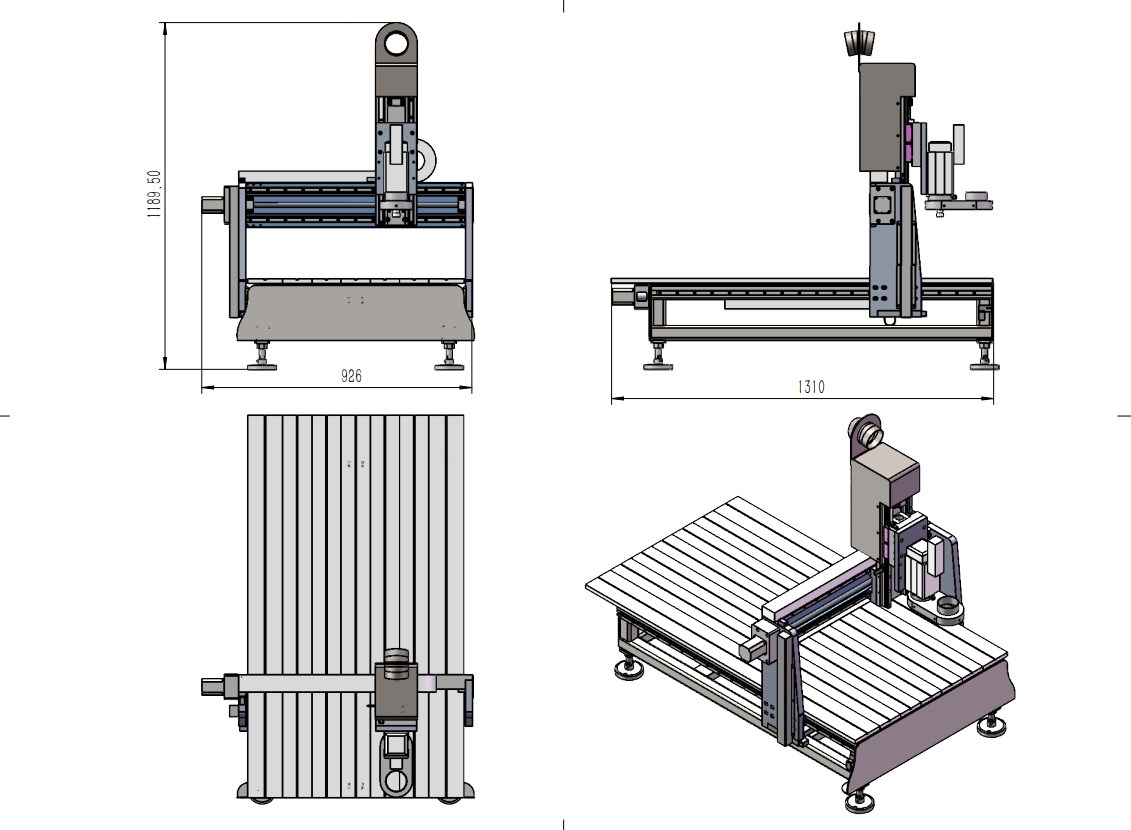

Model No. | Process Area | Accuracy | Weight | Foot Print | ||||
X | Y | Z | W | L | H | |||
TR203E | 600mm | 900mm | 150mm | + 0.05mm | 250KGS | 926mm | 1310mm | 1189.5mm |
23.6″ | 35.4″ | 5.9″ | 36.5” | 51.6” | 46.8″ | |||
