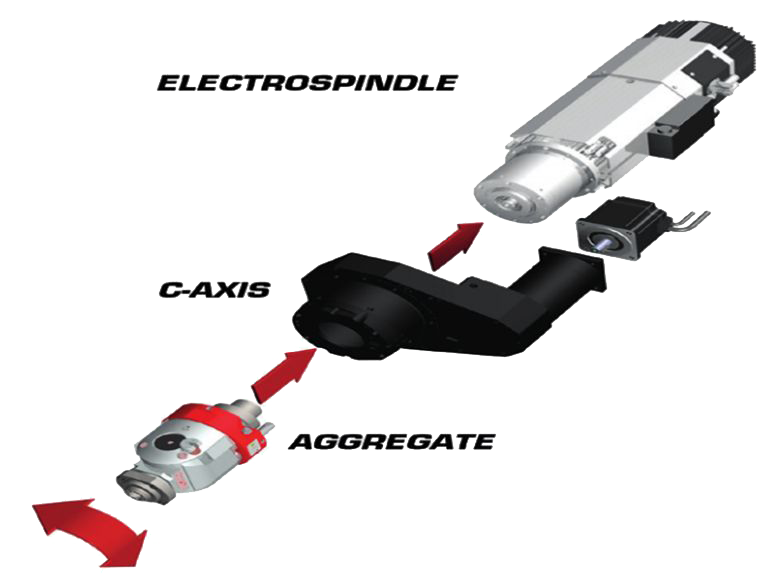

"All in One" Solution by HSD: Electrospindle + C Axis + Aggregate allow a wide range of machining operations to be carried out, including milling, boring and cutting.

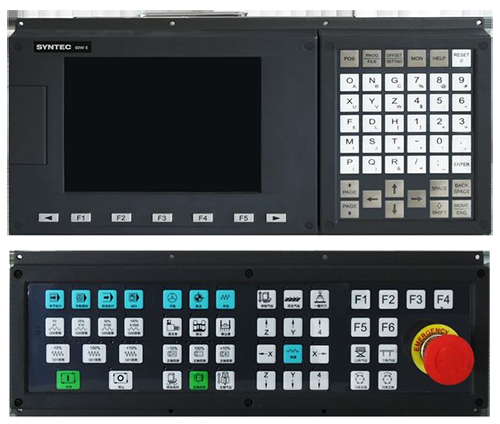

This machine adopts Taiwan SYNTEC 60W-E control system. With an open PLC program, customers can plan according to processing needs. Complete functions, simple cycle to realize flexible dialogue programming, and simple operation. In addition, it provides graphic simulation function to facilitate program error checking. The handwheel simulation function uses the handwheel to control the tool path to facilitate processing and inspection. The functionality of the control system allows dominance over offsets, file manipulation, process speeds and also tool length and wear compensation.
Boring Units are available in a wide range of versions for your choice.

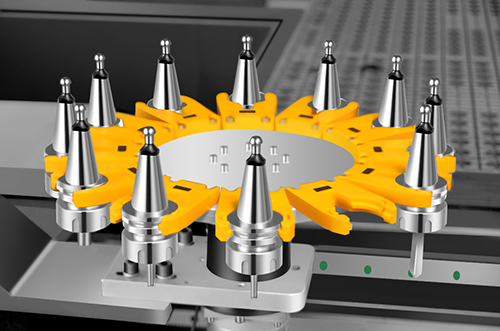

Carrousel with 12 automatic tool change facility by Servo motor ( Upgrade available up to 16 or 20 ). faster tool change speed, higher production efficiency.

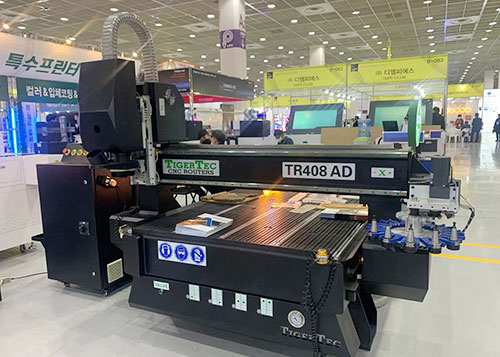

TigerTec TR408AD ATC is designed for efficient working in speed and reliability. 12 programmable CNC knife that allows you to cut a wide range of materials (such as plastic, wood, foam, and composite materials) and applications, from cutting, milling and drilling ensures the accuracy and efficient. The automatic tool changer system speeds up production exponentially as it moves with the gantry. We use servo motor system for the tool changer to increase the speed and accuracy.
Outstanding Features:
* Syntec controller with USB connection and a magnetic hand held manual controller ( Extremely Easy Functions )
* With a 9.0kw ( 12HP) HSD high frequency automatic tool changer spindle
* TigerTec helical rack and pinion and linear guide ways for each of XYZ -movements
* Powered by Yaskawa servo driving system
* Work surface is constructed bakelite with T-slot tracks
* Carousel tool holder with 12 holder positions for the ISO30 chucks driven by servo system
* Automatic tool length calibration device < tool touch off >
Applications:
• Sign Making • Musical Instruments • Wood Working • Plastics
• Foam • Prototyping • Model Making • Education
• General Fabrication • Furniture making • Craft Making

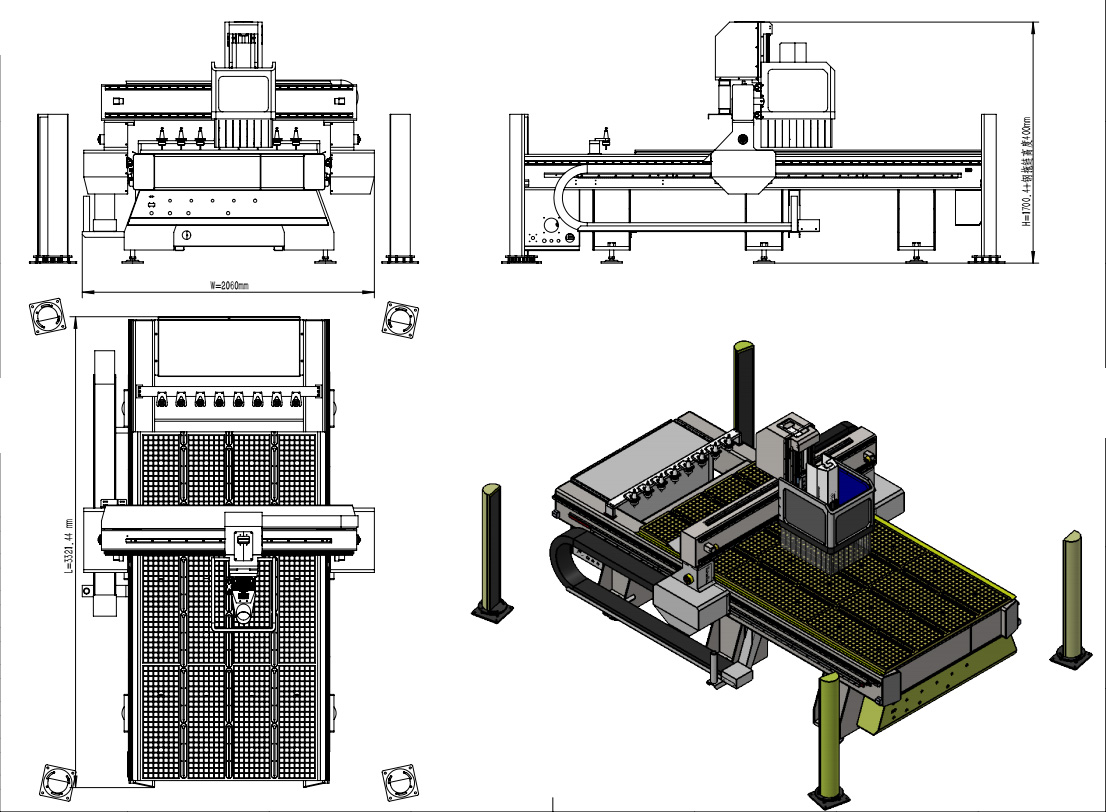

Model No. | Process Area | Accuracy | Weight | Foot Print （W*L*H） | ||||
X | Y | Z | ||||||
TR408ADATC | 1240mm | 2460mm | 200mm | + 0.05mm | 1500KGS | 2024mm | 3300mm | 1600mm |
51.2″ | 98.4″ | 7.9″ | 79.7″ | 129.9″ | 63″ | |||
TR510ADATC | 1500mm | 3000mm | 200mm | + 0.05mm | 1800KGS | 2224mm | 3800mm | 1600mm |
59.0″ | 118.1″ | 7.9″ | 87.6″ | 149.6″ | 63″ | |||
TR710ADATC | 2000mm | 3000mm | 200mm | + 0.05mm | 2100KGS | 2724mm | 3800mm | 1600mm |
78.7″ | 118.1″ | 7.9″ | 107.2″ | 149.6″ | 63″ | |||
TR712ADATC | 2000mm | 4000mm | 200mm | + 0.05mm | 2300KGS | 2724mm | 4800mm | 1600mm |
78.7″ | 157.5″ | 7.9″ | 107.2″ | 189″ | 63″ | |||

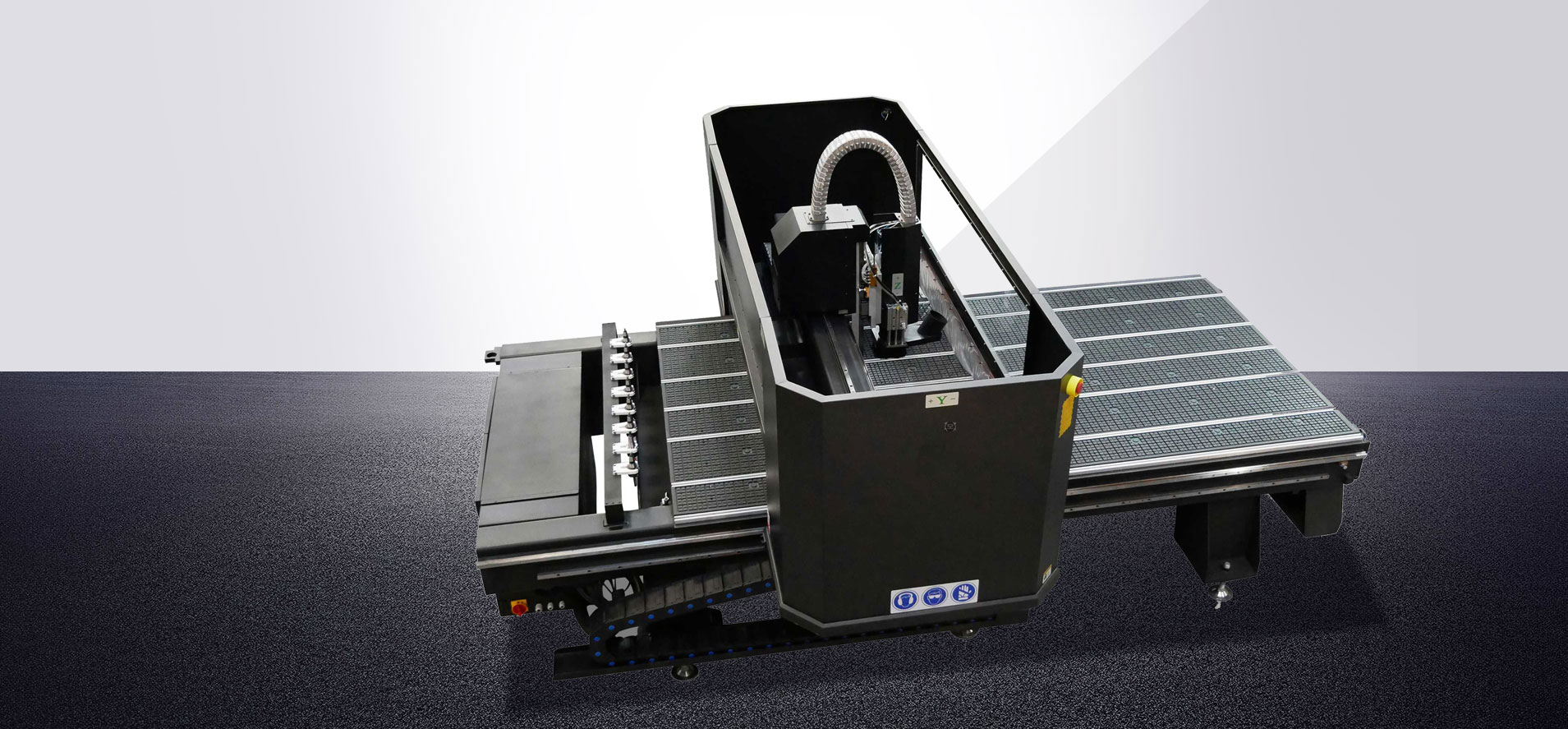

CNC - Nesting machining centre is the new high-performance machining centre for Nesting operations, compact and efficient, with a gantry structure, TigerTec offers top-of-the-range technology and guarantees optimum precision in every machining operation.
