The base frame of our digital tool CNC router machine is fabricated from heavy-duty tubular steel, after the steel be welding is completed, we have carried out fine processing and stress relief steps on the base frame. So our base frame is stable and strong and it makes our machine have a longer service life.

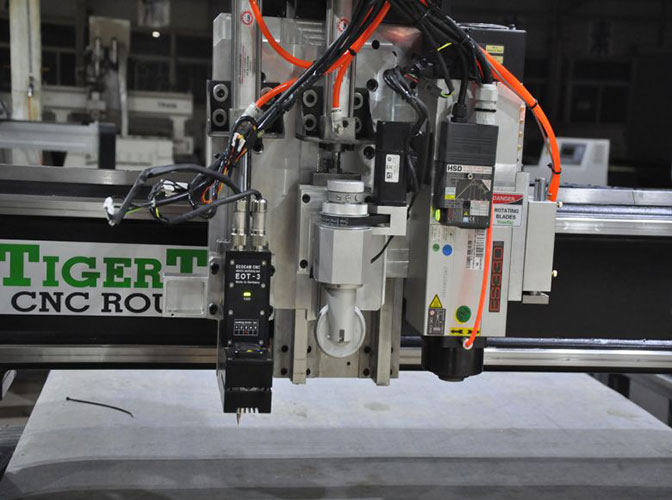

This machine can support many different cutting knives, such as oscillating cutting
knife, drag knife, tangential knife,Creasing Wheel, half cutting knife, round cutting
knife, bevel knife, pneumatic cutting knife, pressure roller, pen, punching knife, etc.

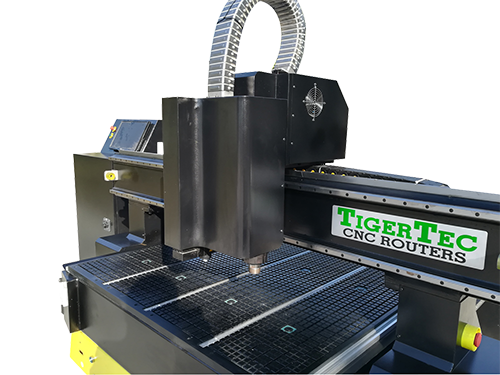

This is a digital CNC router with oscillating cutter and CNC router camera, This CNC router machine is an innovative hybrid CNC production system combining heavy-duty routing with fast knife cutting. It means it can use multiple tools to process almost all materials. Such as the wood, foam, metal etc. However this digital cutting machine price is affordable.
The CCD System is for option. The CCD Vision system is mainly used modular optical recognition system for multi-functional flatbed machine. And it can also be used for industrial usage in exact-outline digital finishing processes.

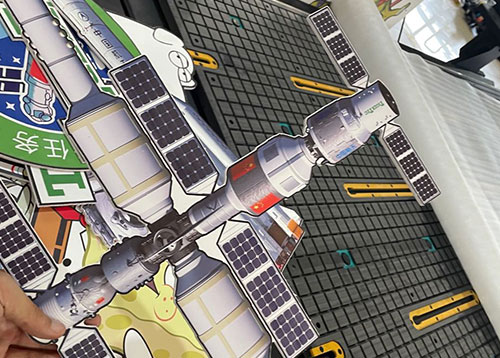

TR408AD WITH CCD It is designed for cutting soft material, like cardboard, foam panel, mat board, carpet and rubber. A powerful oscillation motor moves the blade quickly up and down.
Outstanding Features:
1)Strong anti-interference ability
2) fast recognizing speed
3) high efficiency
4) can recognize big size program design automatically, don't need output engraving routing, good recognize function, fast positioning speed.
5) one person can operate many sets at one time
6) control system can so whole job from making design
Applications:

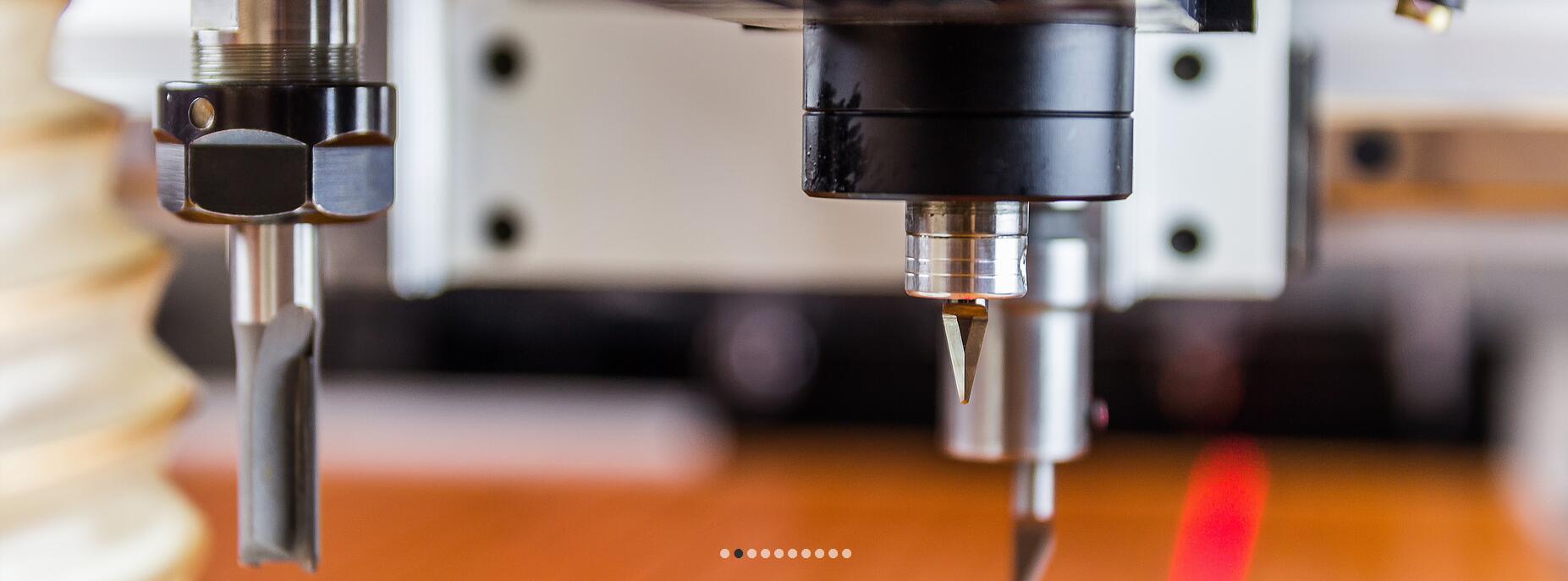

Oscillating knife is suitable for soft material such as leather, kt board, foam, gasket cutting while cnc router spindle can do wood, acrylic cutting. One machine provide you two possibilities.
Model No. | Process Area | Accuracy | Weight | Foot Print （W*L*H） | ||||
X | Y | Z | ||||||
TR408AD
| 1240mm | 2460mm | 200mm | + 0.05mm | 1200KGS | 2024mm | 3300mm | 1600mm |
51.2″ | 98.4″ | 7.9″ | 79.7″ | 129.9″ | 63″ | |||
TR510AD | 1500mm | 3000mm | 200mm | + 0.05mm | 1500KGS | 2224mm | 3800mm | 1600mm |
59.0″ | 118.1″ | 7.9″ | 87.6″ | 149.6″ | 63″ | |||
TR710AD | 2000mm | 3000mm | 200mm | + 0.05mm | 1800KGS | 2724mm | 3800mm | 1600mm |
78.7″ | 118.1″ | 7.9″ | 107.2″ | 149.6″ | 63″ | |||
TR712AD | 2000mm | 4000mm | 200mm | + 0.05mm | 2000KGS | 2724mm | 4800mm | 1600mm |
78.7″ | 157.5″ | 7.9″ | 107.2″ | 189″ | 63″ | |||
