PRODUCT DESCRIPTION

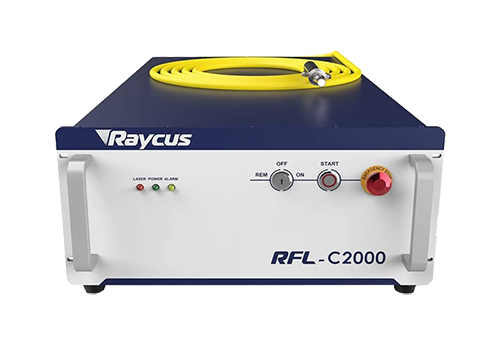

Raycus laser source

High Electro-optical Conversion Efficiency Altitude Stress-resisting Capacity Sheet Cutting Efficiency Customized Output Fiber Length Optional Air Cooling or Water Cooling Maintenance-freeOperation Wide Modulation Frequency Range Max/IPG Fiber laser source for option

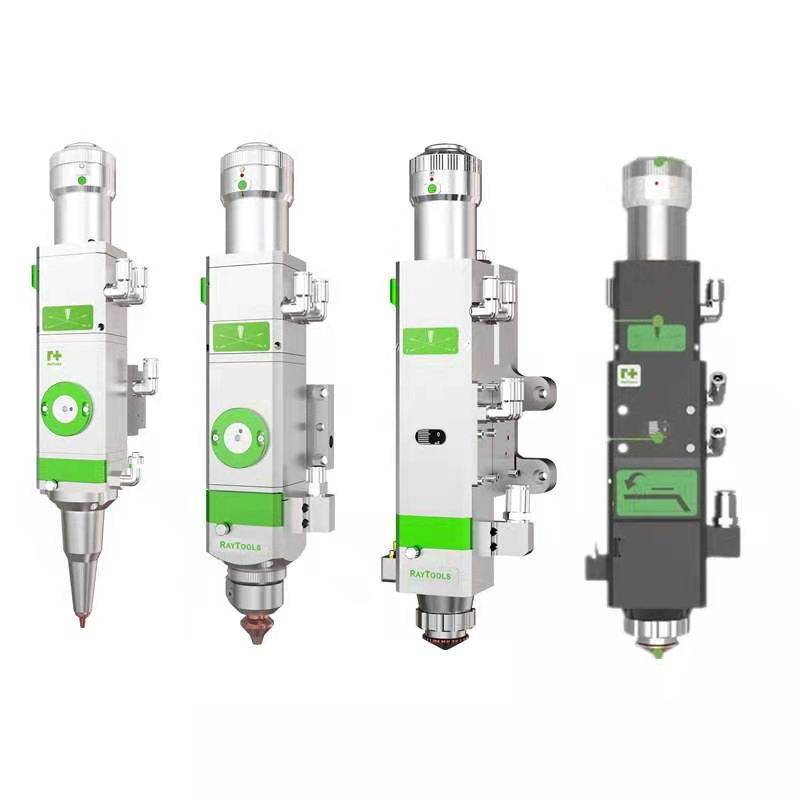

Raytool Laser Cutting Head

Modular design with easy maintenance. Dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens. IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.

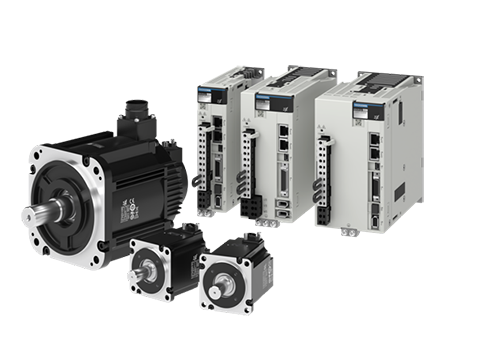

Japan YASKAWA servo motor and driver

The yaskawa servo driver is designed to provide you with an excellent performance and high reliability. Small size, easy to carry and store, can be used for a long time. High quality performance: the servo motor is made of high-quality aluminum alloy material, which is durable and has good corrosion resistance. Convenient operation: the servo motor is equipped with a high-speed variable speed sensor, which can be adjusted according to different needs. Perfect for any occasion: this servo motor is suitable for all kinds of weather conditions, such as rainy, snowy, windy, and so on.

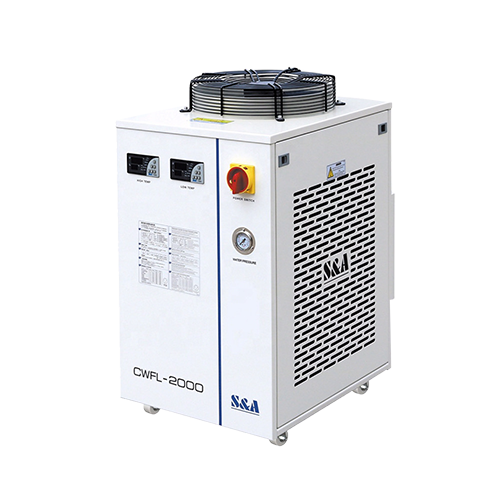

TEYU Water chiller

Dual channel design for cooling fiber laser and the laser head, no need of a two-chiller solution; ±0.5℃ precise temperature control; Temperature control range: 5-35 ℃; Constant temperature and intelligent temperature control modes; Built-in alarm functions to avoid water flow problem or temperature problem; CE, RoHS, ISO and REACH compliant; User-friendly temperature controllers for easy operation Optional heater and water filter.

PRODUCT DESCRIPTION

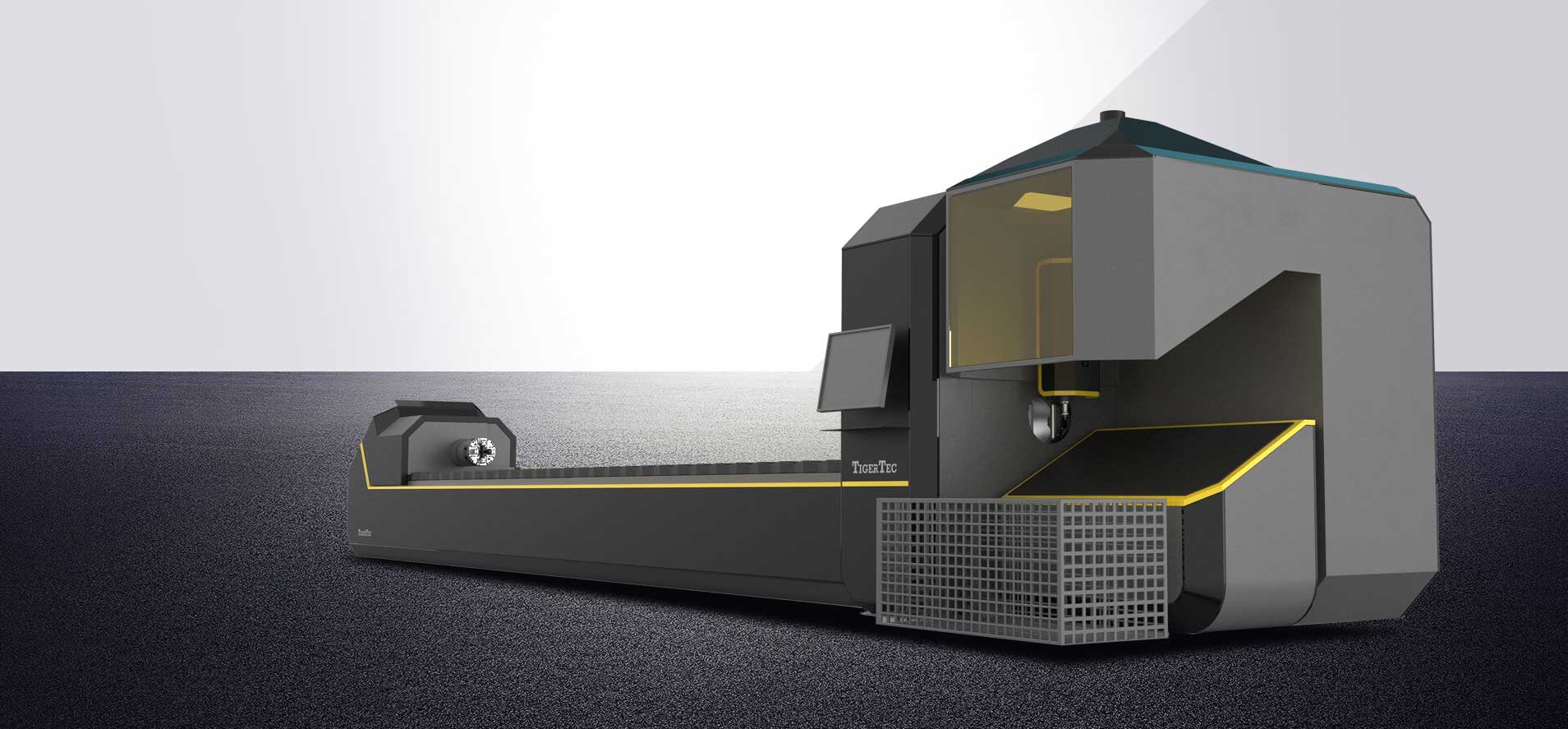

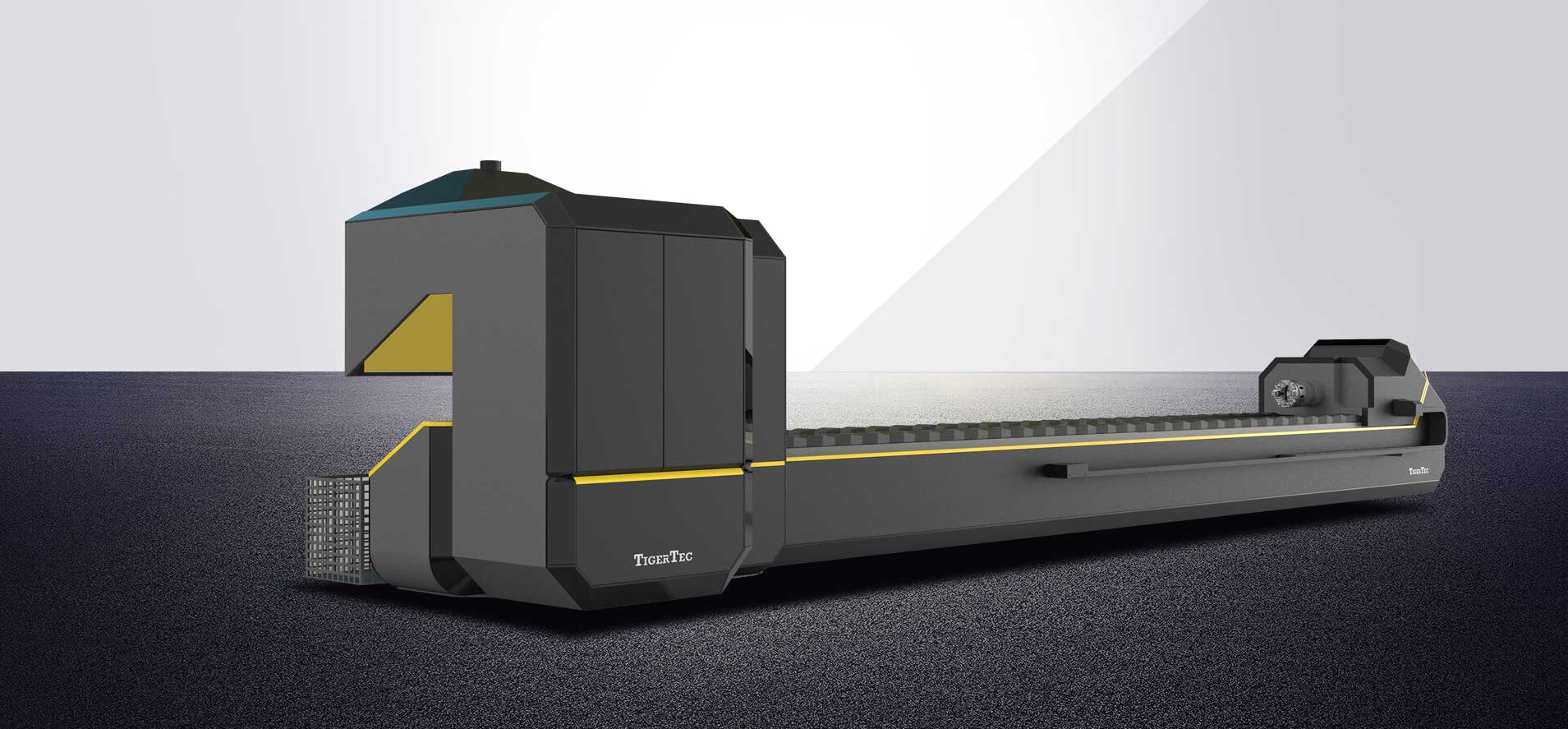

Tube fiber laser cutting machine is a complete system that integrates a material handling systems specifically designed to handle tubing with a fiber laser. Materials are automatically shuffled in and out of the cutting station.

Applications:

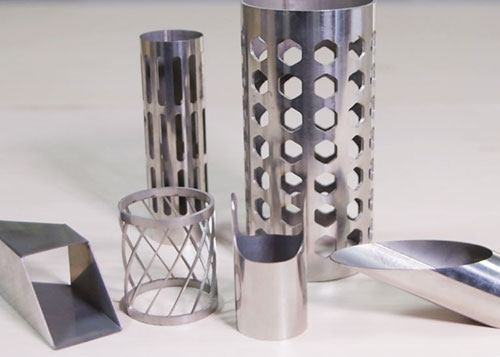

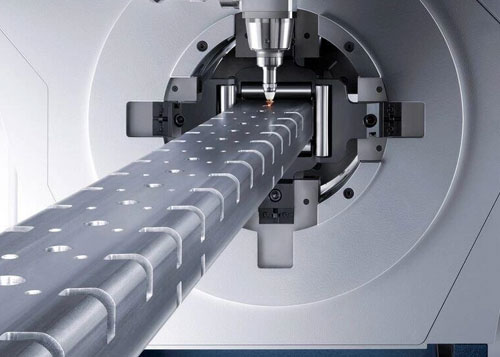

This tube laser cutting machine is very suitable for cutting standard pipes such as round pipes, square pipes, and rectangular pipes. Most shaped tubes and Open-type materials can be processed, such as hexagonal tubes, oval tubes, I-beams, channel steels, and angle steels.

TECHNICAL PARAMETERS

Tube range (length):	295" (7500 mm)
Tube diameter:	Standard: 0.78"- 8.66" (20- 220 mm) Optional: 0.39"- 4.7" (10- 120 mm)
X-axis:	295" (7500 mm)
Y-axis:	7.87" (200 mm)
A, B-axis:	Infinite Rotation
Loading Capacity:	220 Chuck: 342 lbs; 120 Chuck: 154 lbs.
X, Y-axis positioning accuracy:	±0.03 mm/1000 mm
X, Y-axis re-positioning accuracy:	±0.05 mm
A, B-axis positioning accuracy:	±30"
A, B-axis re-positioning accuracy:	±10"
X, Y-axis max positioning speed:	100 m/min
Max positioning speed:	100 rpm
Laser power:	1.5kw, 2kw, 3kw
Laser source:	MAX/RAYCUS/IPG
Laser head:	Raytools
Machine Weight:	1500 kg
Dimensions:	472"x 87" x 91"(12000 x 2200 x 2300 mm)

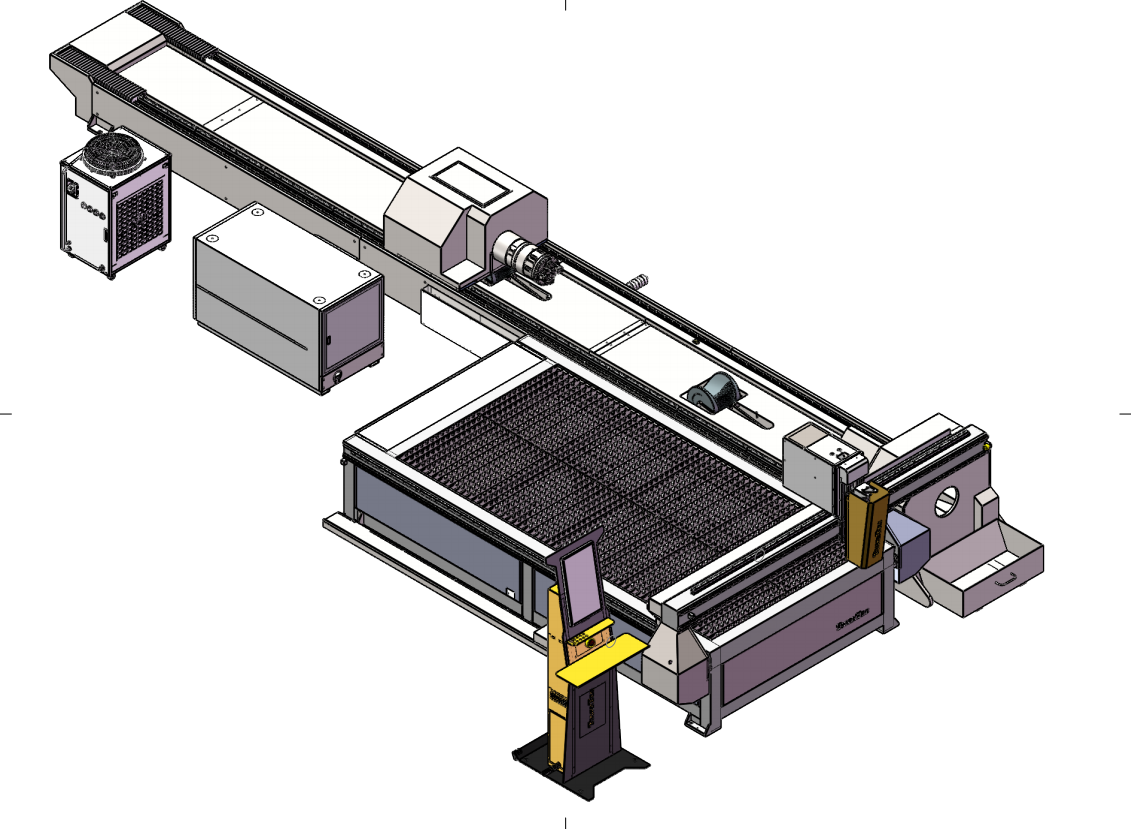

Machine Layout

Nesting series

CNC - Nesting machining centre is the new high-performance machining centre for Nesting operations, compact and efficient, with a gantry structure, TigerTec offers top-of-the-range technology and guarantees optimum precision in every machining operation.

EXPLOPE

Hydraulic Press Brake

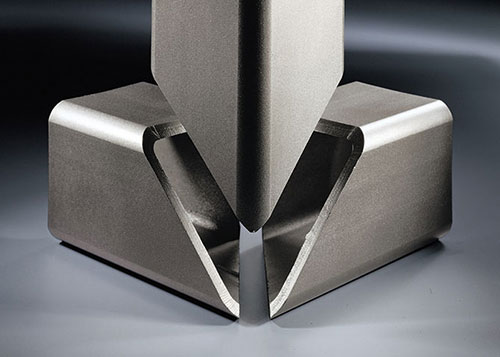

Hydraulic Bending Machine is a type of sheet metal bending machine, which is suitable for sheet metal plate bending process. The press brake capacity ranges from 40 ton to 400 ton and the table length from 2 meters to 6 meters. Hydraulic Bending Machine belongs to forging machineries. The main role is in the metal processing industry. Then, its products are widely used in light industry, aviation, shipbuilding, metallurgy, instrument, electrical appliances, stainless steel products, steel structure construction and other industries.
