PRODUCT DESCRIPTION

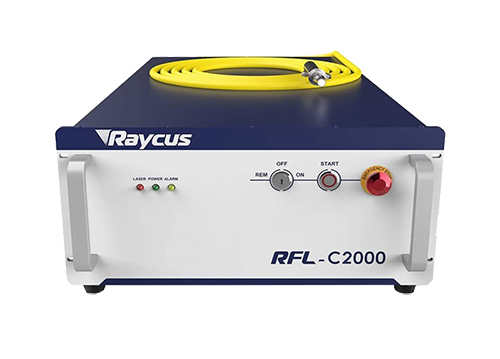

Raycus laser source

High Electro-optical Conversion Efficiency Altitude Stress-resisting Capacity Sheet Cutting Efficiency Customized Output Fiber Length Optional Air Cooling or Water Cooling Maintenance-freeOperation Wide Modulation Frequency Range Max/IPG Fiber laser source for option

Raytool Laser Cutting Head

Modular design with easy maintenance. Dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens. IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.

Japan YASKAWA servo motor and driver

The yaskawa servo driver is designed to provide you with an excellent performance and high reliability. Small size, easy to carry and store, can be used for a long time. High quality performance: the servo motor is made of high-quality aluminum alloy material, which is durable and has good corrosion resistance. Convenient operation: the servo motor is equipped with a high-speed variable speed sensor, which can be adjusted according to different needs. Perfect for any occasion: this servo motor is suitable for all kinds of weather conditions, such as rainy, snowy, windy, and so on.

TEYU Water chiller

Dual channel design for cooling fiber laser and the laser head, no need of a two-chiller solution; ±0.5℃ precise temperature control; Temperature control range: 5-35 ℃;  Constant temperature and intelligent temperature control modes; Built-in alarm functions to avoid water flow problem or temperature problem; CE, RoHS, ISO and REACH compliant; User-friendly temperature controllers for easy operation Optional heater and water filter.

PRODUCT DESCRIPTION

TigerTec fiber laser give you the ideal equipment for laser processing which makes it easier for you to earn good reputation in the world.

TigerTec fiber laser series designed to large-scale series production with extensive automation displays its superiority across the board. This applies in particular to cost-effective laser processing of small to medium-sized components with good quality.

TigerTec fiber laser series is robust and reliable which will create smooth cutting edges and no need require  post-processing. The parts are free of burrs even with thick stainless steel. A simple operating concept can be easily operated by new operators and is well equipped with intelligent features to deliver worry-free, walk-away performance and high productivity.

Outstanding Features:

• Heavy-duty welded steel structure

• High precision and reliability over time

• Maximum productivity, minimum footprint.

• Machine customization depending on different

production requirements

Applications:

Capable of cutting carbon steel, brass, aluminum and stainless steel without fear of back reflections damaging the machine. By using these fiber laser machines, you will-reduce your maintenance requirements and cut your operating costs considerably.

Kitchen cabinets,Door processing, Lighting hardware, Chassis cabinets, Advertising signs, Elevator manufacturing, Sheet metal processing, Home appliances.


TECHNICAL PARAMETERS

Model

TRF510,TRF512,TRF710

Working area

1500*3000mm/1500*4000mm/2000*3000mm

Gantry

Steel gantry

Motor

Yaskawa servo motor with shimpo reducer from Janpan

X/Y Axis positioning accuracy

±0.05mm/m

X/Y Axis repeated positioning accuracy

±0.02mm/m

Fiber laser source

Raycus/IPG/MAX

Laser head

Raytools

Water chiller

Teyu

idling speed

≤80m/min

Cutting head

≤50m/min

Max.Acceleration

0.8G

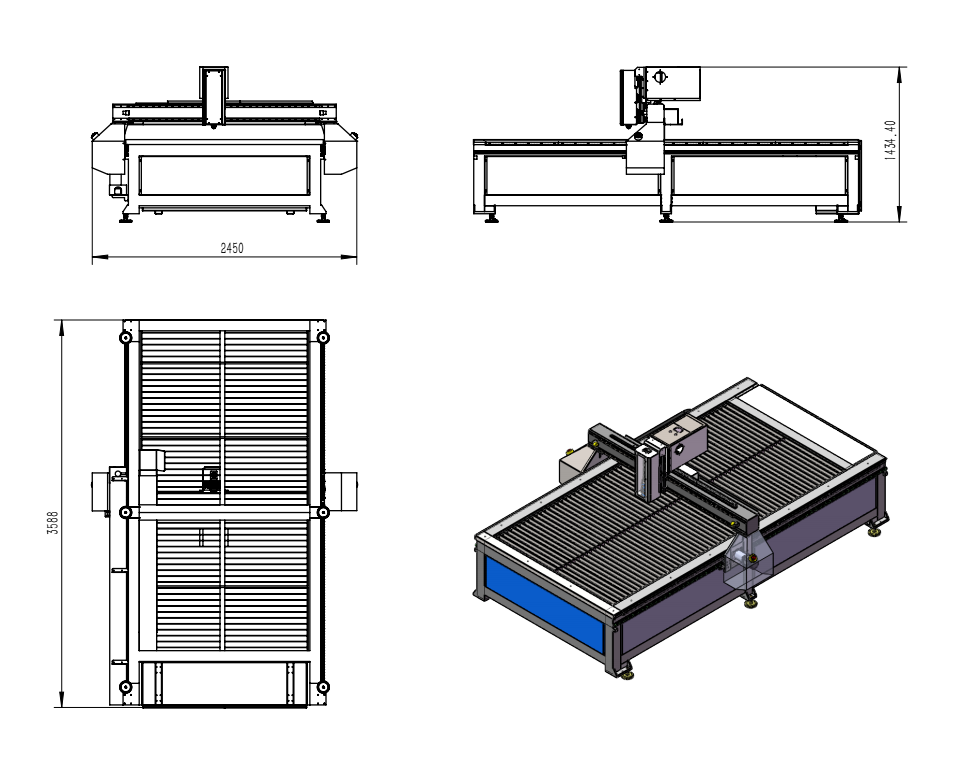

Machine Layout
